Door Retaining Catch

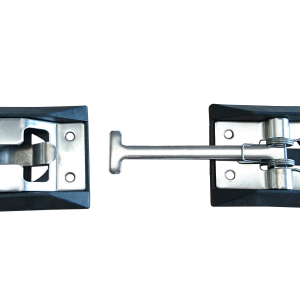

Door retaining catch
Comes as a two piece set, male & female parts.
Can be applied to any door type.

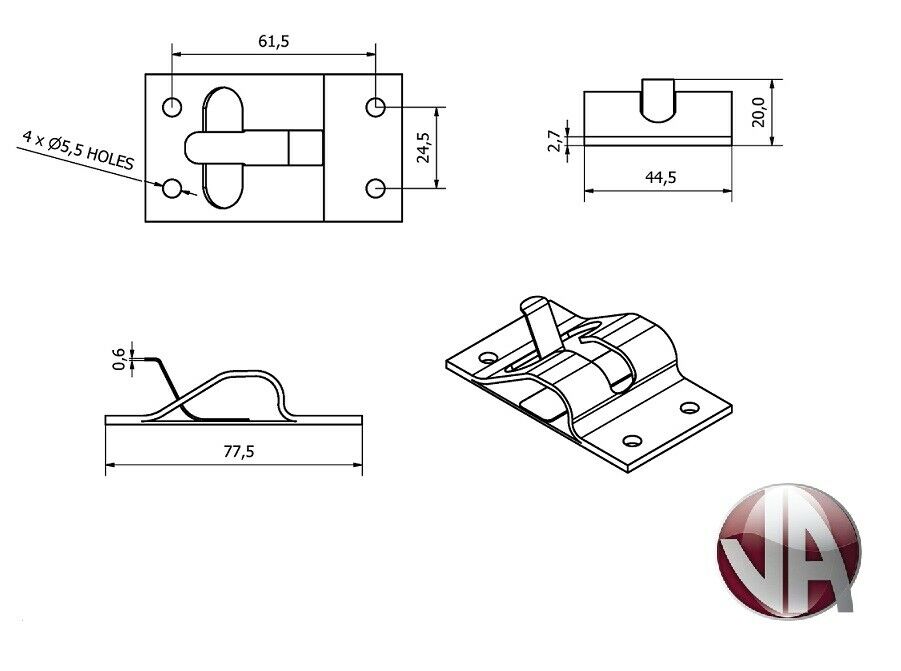

The catch plate has a security spring to save the hook being accidentally knocked off the catch plate.
Supplied finish- zinc plated

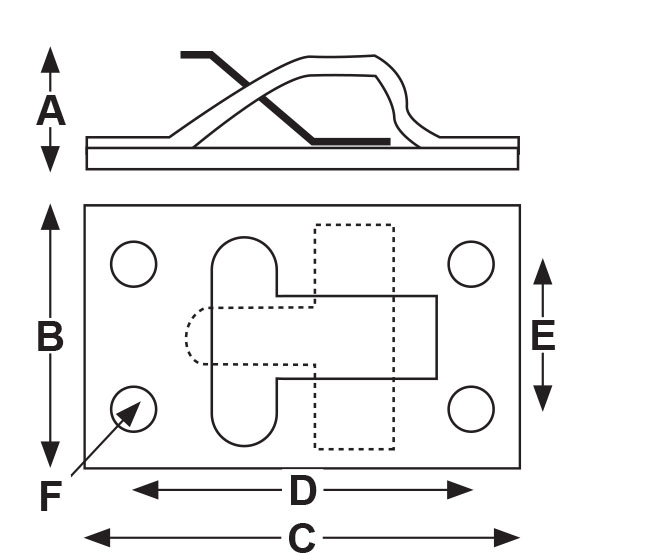

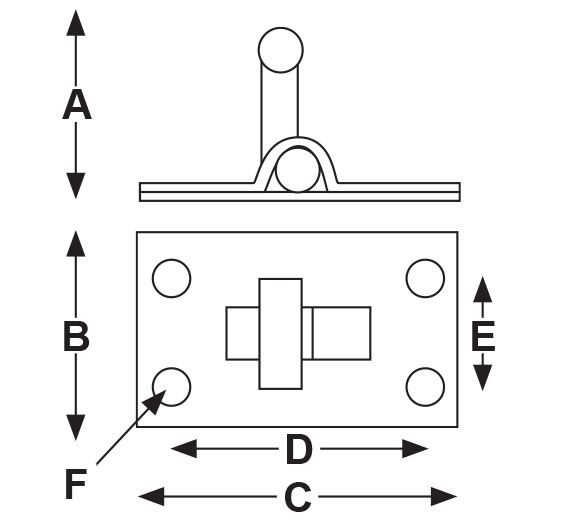

| Â CODE | Â A(mm) | B(mm)Â | C(mm)Â | D(mm)Â | E(mm)Â | F(mm)Â |

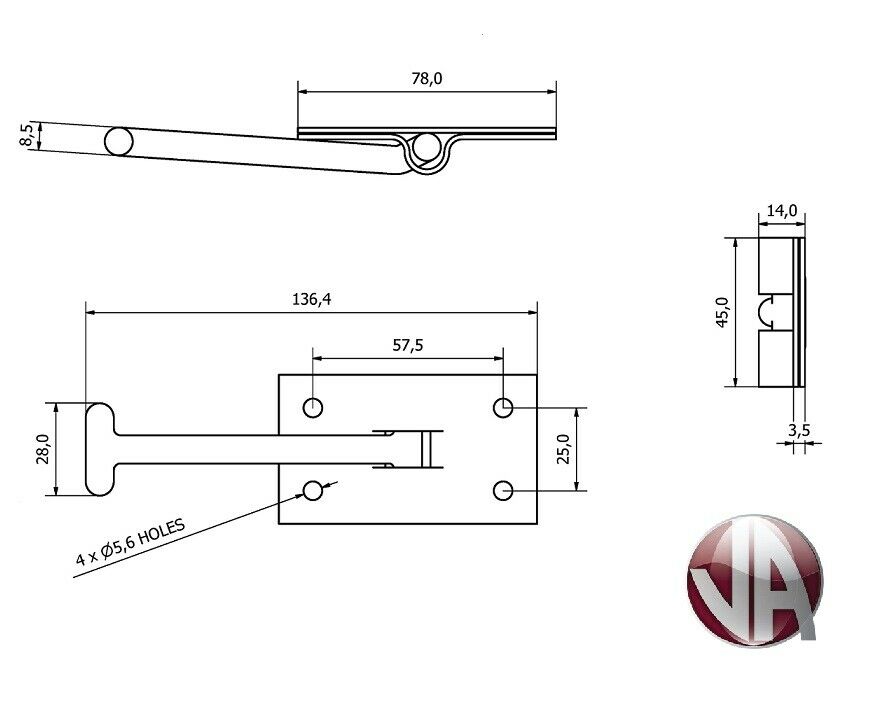

| Â Hook | Â 16.00 | Â 44.00 | Â 76.00 | Â 60.00 | Â 26.00 | Â 5.00 |
| Â Catch | Â 18.00 | Â 45.00Â | Â 77.00 | Â 59.00 | Â 25.40 | Â 5.50Â |
